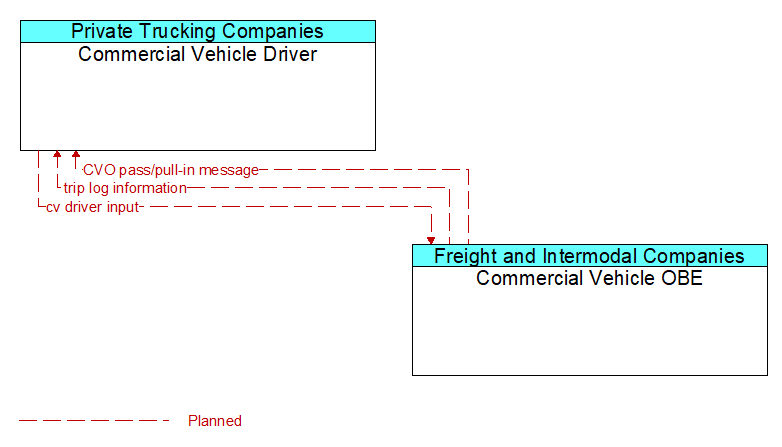

Interface: Commercial Vehicle Driver - Commercial Vehicle OBE
Architecture Flow Definitions
cv driver input (Planned)
This flow represents the tactile or auditory interface with ITS equipment containing the commercial vehicle driver and vehicle information. This flow contains inquiries to the commercial vehicle managing system, interaction with on-board equipment including setup, configuration, and initiation of self tests, and entry of carrier, driver, vehicle, and route information.
CVO pass/pull-in message (Planned)
This flow represents the visual or auditory interface with ITS equipment containing a message sent to commercial vehicle driver indicating whether to bypass or requesting pull in to inspection/verification stop along with inspection results (e. g., LED indicator on transponder or variable message sign).
trip log information (Planned)
This flow represents the tactile or auditory interface with ITS equipment containing the information entered into the trip log, or request for update.
